In a world obsessed with the newest tech and the latest model, the Marion Type 7400 dragline is a glorious, grease-covered exception. Built in 1949 and rebuilt decades later, this steel behemoth still throws dirt around like it’s 1950 – and it does it with style.
Who Built the Beast?
The Marion Type 7400 was engineered and built by the Marion Power Shovel Company of Marion, Ohio – a true titan of early-to-mid 20th century heavy machinery manufacturing. Founded in 1884, the company had deep roots in excavation technology, having built some of the earliest steam-powered shovels in the U.S.
By the time the 7400 rolled out in 1949, Marion had decades of experience designing machines for massive infrastructure and mining projects. Their equipment played a crucial role in building the Panama Canal and, later, transporting Saturn V rockets for NASA. So when they built the 7400, it was less of an experiment and more of a culmination – a peak in dragline evolution at the time.
The 7400 was designed for longevity and sheer output. Its electric-powered winch systems, cable operation, and rugged steel construction made it ideal for large-scale strip mining, especially in America’s booming coal regions. And unlike some competitors that leaned into rapid innovation, Marion focused on making things that lasted – clearly, a good call.
Cable Over Hydraulics: Old School Done Right
Unlike hydraulic excavators, draglines like the 7400 operate through a series of winches and cables. This might sound old-fashioned, but there’s a method to the madness. Cable systems allow for longer reach, lower ground pressure, and smooth sweeping motion ideal for removing vast layers of overburden. The mechanical feel may be more manual, but it’s incredibly precise in the hands of a seasoned operator.
What Is the Marion Type 7400 Dragline?

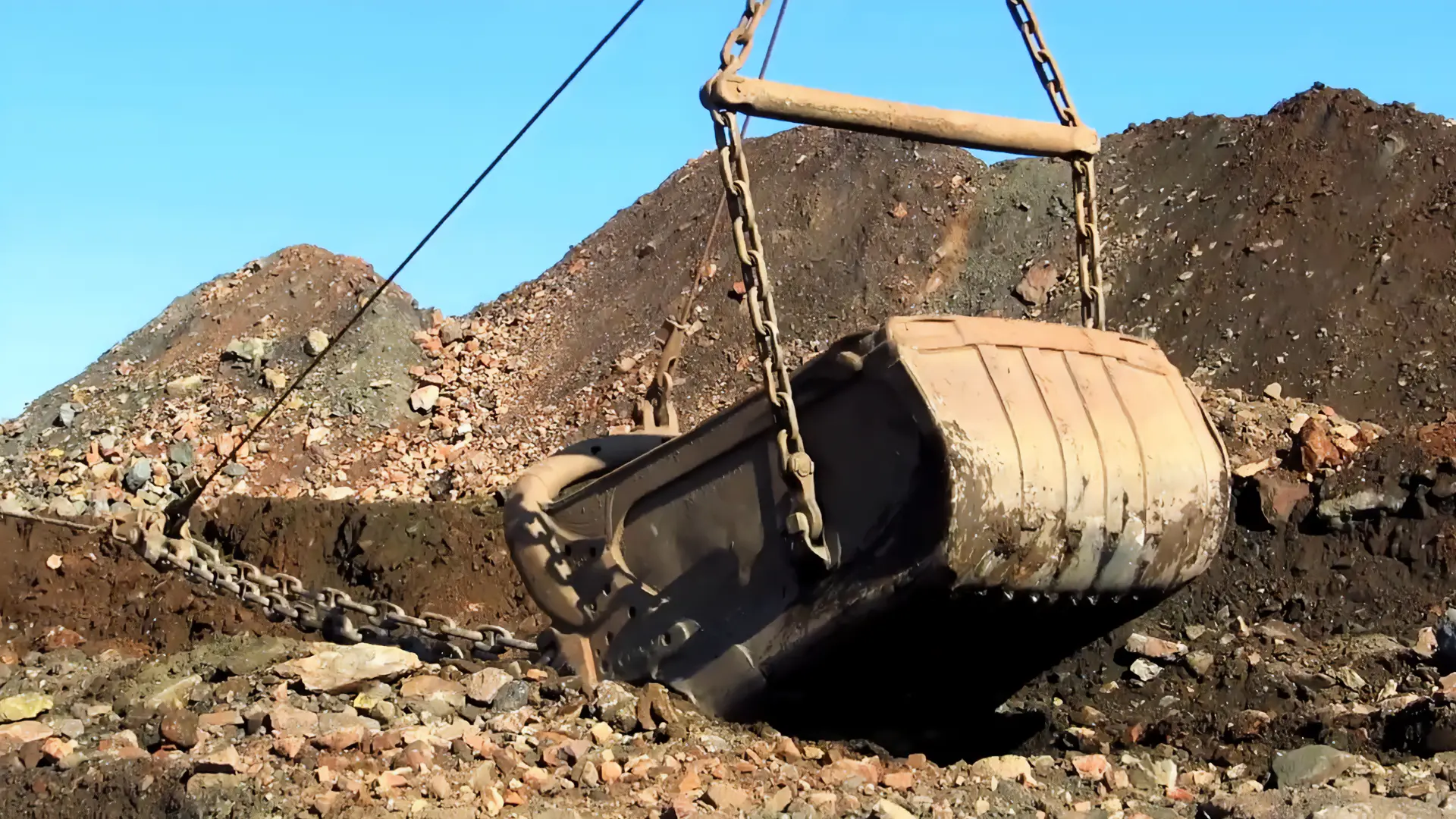

For the uninitiated, a dragline is a type of large excavator used primarily in mining operations. Instead of hydraulic arms, it uses a system of cables and winches to manipulate a massive bucket on a long boom.
The Marion 7400 was designed for surface mining, especially for removing overburden – the rock and soil that sits on top of valuable mineral deposits.
Let’s break it down simply:
- Boom Length: ~150 feet (around 45 meters)
- Bucket Capacity: Up to 30 cubic yards (roughly 23 m³)
- Operating Weight: Hundreds of tons, depending on configuration
- Power Source: Originally electric; rebuilt versions may have modernized systems
In plain English: this thing can scoop up a small backyard in one go and toss it 100 feet away like it’s tossing popcorn.
How Is It Used?
The Marion 7400 excels in surface mining. Its main job is overburden removal – clearing the top layers of earth to expose coal, phosphate, or other minerals underneath. Instead of going for depth like a hydraulic excavator, it sweeps wide. That long boom gives it massive reach, ideal for mining pits where you want to keep equipment far from the edge for safety.
Operators sit in a cab that feels more like the cockpit of a battleship than a digger. With a panel of levers, foot pedals, and a view of nothing but sky and spoil heaps, running this dragline is more about finesse than brute force. Timing the swing, drag, and dump is a dance that only the best operators master.
Why Is It So Special?
Here’s the kicker: it’s over 70 years old and still working. That’s not just a testament to its build quality – it’s a love letter to mechanical engineering done right. Rebuilt draglines like this one show how refurbishing old equipment can not only save money but preserve industrial heritage.
Some fun facts:
The Marion Power Shovel Company (maker of the 7400) also helped build NASA’s crawler-transporters.
It takes days to assemble or move one of these draglines due to their sheer size.
Despite its vintage, a well-maintained dragline can outperform smaller, newer machines in bulk material movement.
How Does the 7400 Stack Up?
Modern draglines like the Bucyrus 8750 or CAT 8200 boast even larger capacities, advanced operator cabs, and remote diagnostic systems. But here’s the surprise — in raw efficiency over flat terrain, the Marion 7400 still holds its ground. While newer models might swing faster or dig deeper, the 7400’s simplicity means fewer breakdowns and easier maintenance. And its cost-to-performance ratio is still surprisingly competitive.
Top 5 Biggest Draglines – And Where the 7400 Ranks
Want perspective? Here’s a quick rundown of the giants:
Big Muskie – Bucket: 220 yd³
The Captain – Bucket: 180 yd³
Bucyrus 8750 – Bucket: ~120 yd³
Page 757 – Bucket: 150 yd³
Marion 7400 – Bucket: 30 yd³ (but still a legend!)
While it’s not the biggest, the 7400 has one of the longest legacies. It might not top the size charts, but it easily earns a place in the Dragline Hall of Fame.
Where the 7400 Worked (and Still Might Be)
The Marion 7400 has seen service in surface coal mines throughout the United States, especially in Appalachia and the Midwest. Some units were relocated across state lines or refurbished for educational and demo purposes. In a few cases, surviving units have become the centerpiece of mining museums or are operated by enthusiast groups during special events. It’s a bit like a working steam engine — history that roars to life.
A Living Legend
The 7400 isn’t just a machine – it’s a spectacle. When it swings into action, it draws crowds of enthusiasts, former miners, and curious onlookers. It’s a relic that refuses to retire, a workhorse with war stories.
And perhaps the most charming part? There’s something poetic about a 1949-built giant still digging into the earth in an age of drones and AI.
